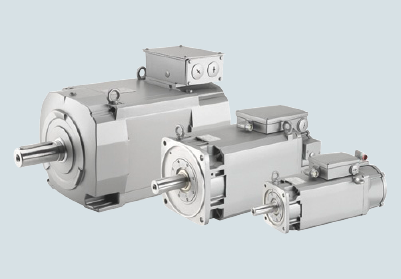

1PH8224-1DF00-2BA1

SIMOTICS M Compact induction
motor 1500rpm, 95kW, 605Nm, 200
A, 340V 1750rpm, 110 kW, 600Nm,
198A, 395V 2000rpm, 124kW,
592Nm, 196A, 460 V forced
ventilation Direction of air
flow DE-->NDE Degree of
protection IP55
Incremental encoder 22-bit with
commutation position (encoder
IC22DQ) with DRIVE-CLiQ
interface
DESIGN IM B3 (IMB6, IMB7, IMB8,
IMV6)
SHAFT WITH FITTED KEY HALF-KEY
BALANCING
BEARING: STANDARD VIBRATION
SEVERITY GRADE R/A; SHAFT
A.FLANGE ACCURACY GR. R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
