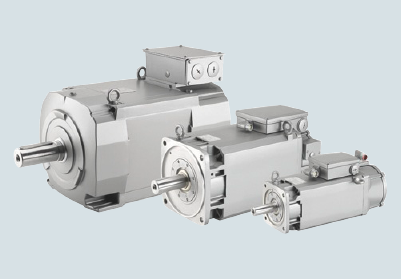

西门子主轴伺服电机1PH8166-1DG22-2QB1

SIMOTICS M Compact induction
motor 2000rpm, 64kW 306Nm, 125
A, 376V 2300rpm, 72kW 299Nm,
124A, 420V 2650rpm, 83kW 299Nm,
125 A, 460 V water cooling
Degree of protection IP65
Incremental encoder 22-bit with
commutation position (encoder
IC22DQ) with DRIVE-CLiQ
interface
DESIGN IM B5 (IMV 1,IM V3)
SHAFT WITH FITTED KEY HALF-KEY
BALANCING
BEARING: ADVANCED LIFETIME
VIBRATION SEVERITY S/A SHAFT A.
FLANGE ACCURACY GR. R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE LEFT SIGNAL
CONNECTION D-END
