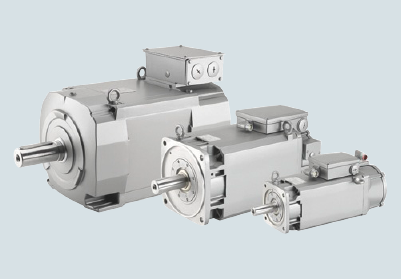

1PH8133-1DB03-2BA1

SIMOTICS M Compact induction
motor 400rpm 5.2kW 124Nm 15.5A
309V 500rpm 6.5kW 124Nm 15.5A
363V 600rpm 7.8kW 124Nm 15.5A
421V forced ventilation;
direction of air flow DE-->
NDE; Degree of protection IP55
Incremental encoder 22-bit
Without commutation position
(encoder IC22DQ) with
DRIVE-CLiQ interface
DESIGN IM B35 (IM V15, IM V35)
SHAFT WITH FITTED KEY HALF-KEY
BALANCING
BEARING: STANDARD WITH FIXED
BEARING, VIBRATION SEVERITY
GRADE: R/A, FLANGE ACCURACY: R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
