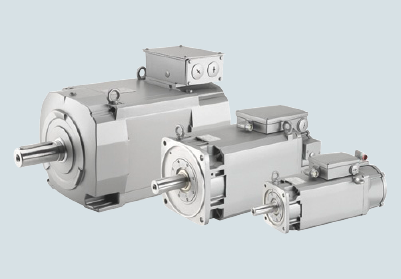

西门子1PH8伺服电机1PH8083-1SN02-0MA1

SIMOTICS M Compact induction
motor 4500rpm, 4.8 kW 10Nm,
17A, 300V 5000rpm, 5.3kW 10Nm,
17A, 335V 5500rpm, 5.5 kW 11Nm,
16.5A, 350 V forced
ventilation; direction of air
flow DE--> NDE; Degree of
protection IP55
Incremental encoder 19-bit
Without commutation position
(encoder IN19DQ) with
DRIVE-CLiQ interface
DESIGN IM B5 (IMV 1,IM V3)
PLAIN SHAFT WITHOUT FITTED KEY;
BEARING: HIGH PERFORMANCE
VIBRATION SEVERITY GRADE
SPECIAL/B SHAFT AND FLANGE
ACCURACY GR. SPECIAL
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
