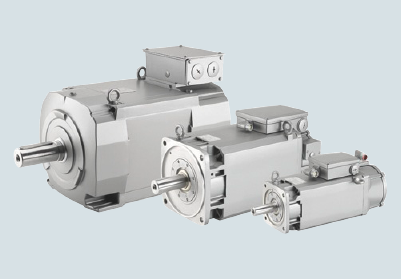

西门子伺服电机1PH8083-1SN20-0MA1

SIMOTICS M Compact induction
motor 4500rpm, 6.7kW, 14Nm,
18A, 347V 5000rpm, 7.5 kW,
14Nm, 18A, 383V 5500rpm, 8.2kW,
14Nm, 18A, 460 V water cooling
Degree of protection IP65
Incremental encoder 19-bit
Without commutation position
(encoder IN19DQ) with
DRIVE-CLiQ interface
DESIGN IM B3 (IM V5, IM V6)
PLAIN SHAFT WITHOUT FITTED KEY;
BEARING: HIGH PERFORMANCE
VIBRATION SEVERITY GRADE
SPECIAL/B SHAFT AND FLANGE
ACCURACY GR. SPECIAL
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE RIGHT SIGNAL
CONNECTION D-END
