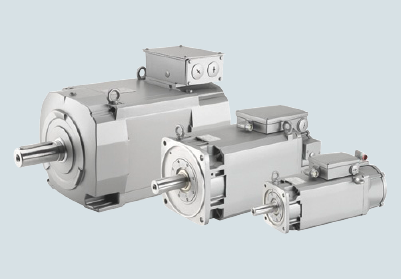

西门子伺服电机1PH8083-1MG02-1BB1

1PH80831MG021BB1SIMOTICS M Compact induction
motor 2000rpm, 3.7kW 18Nm,
11.6A, 293V 2300rpm, 4.1kW
17Nm, 11.3A, 332V 2650rpm, 4.6
kW 17Nm, 11.2A, 376V forced
ventilation; direction of air
flow DE--> NDE; Degree of
protection IP55
INCREMENTAL ENCODER SIN/COS
1VPP 2048 S/R WITH ND-END AT
TERMINAL BOX (ENCODER
IC2048S/R) with TEMPERAT.
SENSOR KTY84-130
DESIGN IM B5 (IMV 1,IM V3)
SHAFT WITH FITTED KEY FULL-KEY
BALANCING
BEARING: STANDARD WITH FIXED
BEARING, VIBRATION SEVERITY
GRADE R/A; SHAFT AND FLANGE
ACCURACY: R
TERMINAL BOX (ABOVE) CABLE
ENTRY ON THE LEFT SIGNAL
CONNECTION D-END
